SP-101
Tap a section to view your pool information.

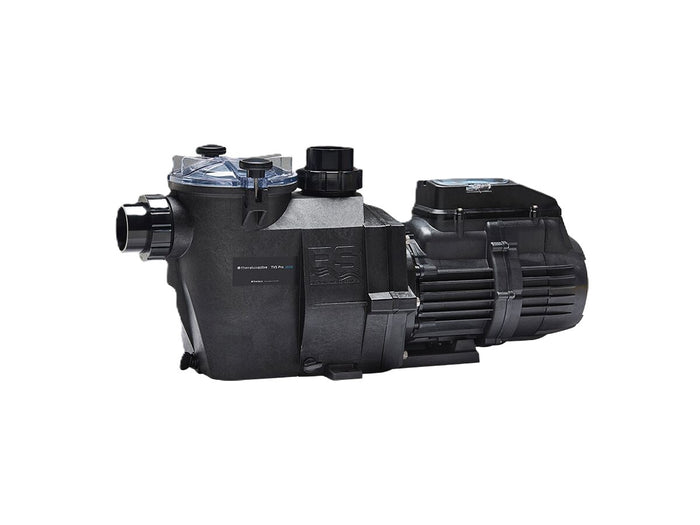

Theralaux TVS Pro 1.25
GoodHealth notesPump is working as it should.
Recommended settingsEmpty the pump basket when required, should be checked weekly.
Medium speed is best for everyday running use. Use the pumps high speed when backwashing the filter, cleaning the pool, or running the spa jets.
Medium or low speed is best when running the heater.
Installation date01 August 2026
Warranty expiry01 August 2028
Theralaux 255
GoodHealth notesRunning well, pressure is low as it should be.
Recommended settingsBackwash when pressure reaches 120-150kpa.
Pump will need to be running on the high speed to get a true reading of the pressure.
"Backwash" for 1 minute when required, then "Rinse" until water is clear (Roughly 1 minute)
Installation date01 August 2026
Warranty expiry01 August 2036

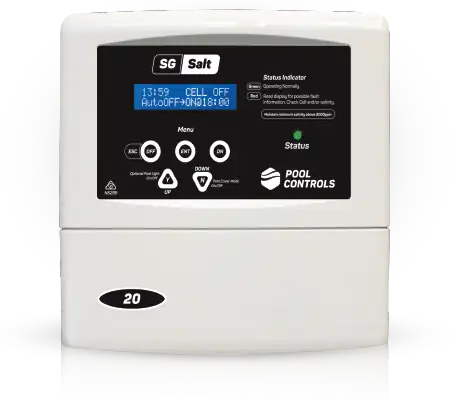

Pool Controls 20g
GoodHealth notesProduction fine, plenty of chlorine being produced
Recommended settingsChlorine output should be set to 100% in Summer, and then monitor chlorine levels to maintain between 1ppm - 3ppm. System should be set to run for 8hrs per day minimum in Summer.
In Winter, chlorine output can be reduced to around 50-60%, but again, monitor chlorine.
Output needs to be reduced when poo cover is on. Reduce by 30%.
System should run for 4hrs per day in Winter.
Installation date01 August 2026
Warranty expiry01 August 2028
Theralaux 20kw
GoodHealth notesHeating well and temperature differential is 2 degrees where it should be.
Recommended settingsRecommended temperature is 26c-28c. Once temperature reaches above 30c, chlorine becomes less efficient.
Best to leave the pool cover on at night time to keep the heat in the pool, and minimise how long the heater needs to run during the day. Run the heater while the sun is up.
Installation date01 August 2026
Warranty expiry01 August 2036
Enter water test results from your home test kit or pool shop.
Dosage guidance: Estimates use Hy-Clor published product-chart rates for Calcium Increaser (200 g/10,000 L per ~15 ppm) and Stabiliser (500 g/10,000 L per ~50 ppm). Salt uses Passport chlorinator settings; buy whole 20 kg bags but add only the calculated amount. Copper advice depends on the exact controller. Always use calcium hardness (not total hardness) for calcium calculations. Check the exact product label, maximum single dose and application directions; never mix chemicals. Dose each chemical separately in the order shown, allowing the circulation time on its label. Never mix chemicals. For ordinary independent corrections, a single final retest is sufficient; if a step specifically requires an intermediate test, do that before continuing. Do not swim when sanitiser readings are unsafe. Estimates are not water-safety clearance or Hy-Clor approval.

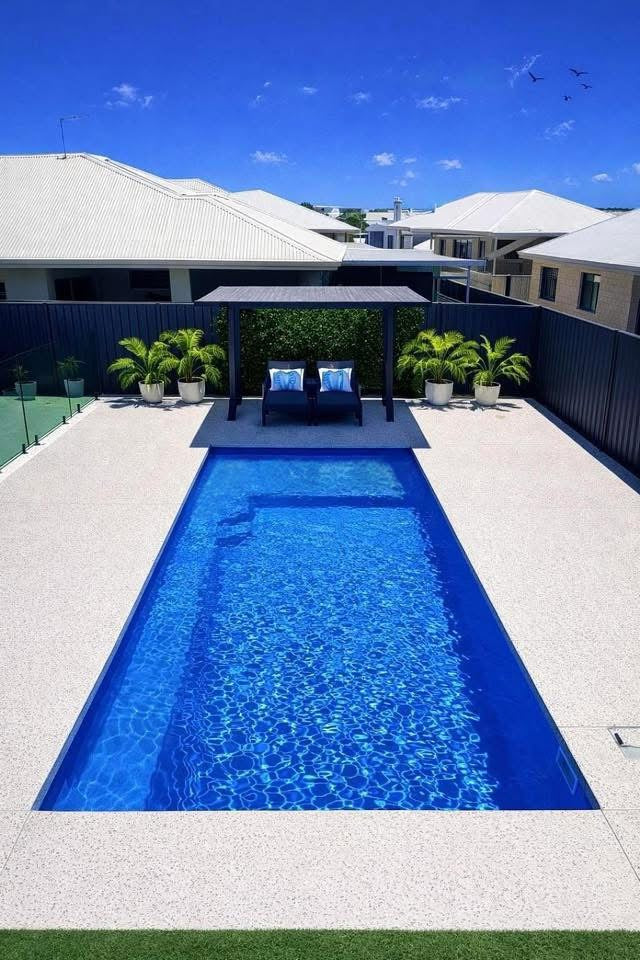

Technician: Matt Hoffman
Works completedFull service completed. Orings all greased, backwash on filter completed, pump and skimmer baskets emptied.
Pool water tested and balanced.
Technician: Matt Hoffman
Works completedTested water and balanced pool. Backwashed filter. Small leak fixed from union on top of pool pump.
Service Heater after summer. Backwash when pressure builds. Maintain chlorine level between 1ppm - 3ppm, and PH level between 7.2-7.6 System is working well, filtering as it should and producing plenty of chlorine.
