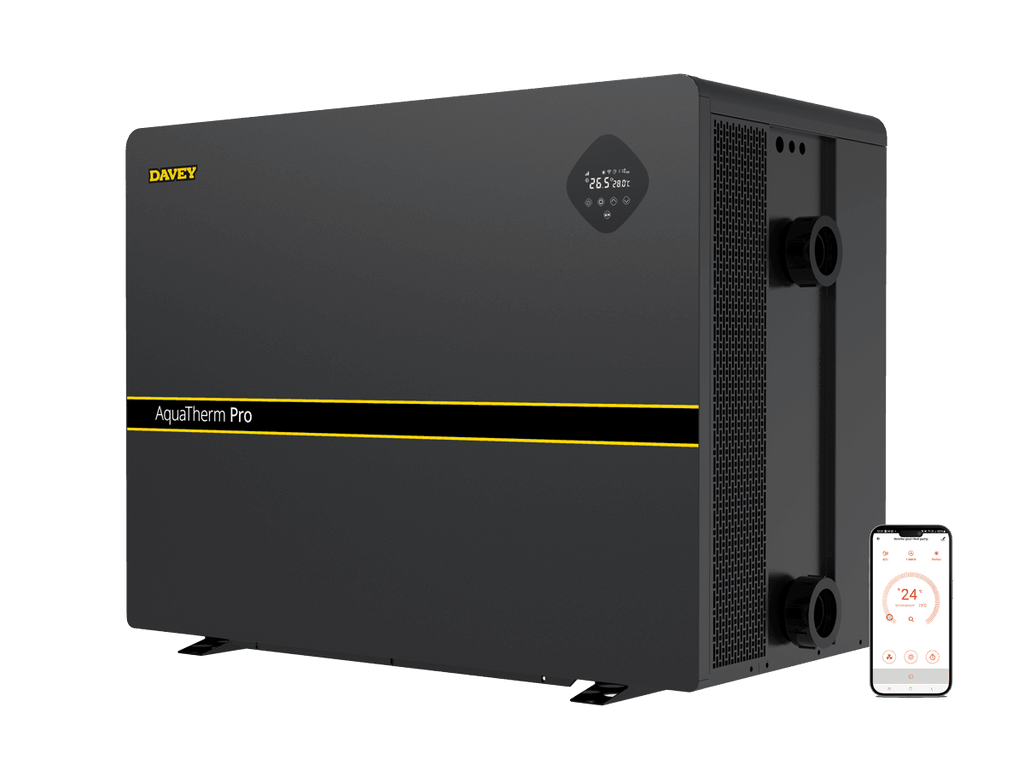

Davey AquaThermPRO Heat Pump
  • Davey AquaThermPRO Heat Pump
  • Davey AquaThermPRO Heat Pump
Davey AquaThermPRO Heat Pump

Davey AquaThermPRO Heat Pump

Premium full-inverter pool heating and cooling with Wi-Fi control, ultra-quiet operation and reliable performance in temperatures down to -15°C.
Professional installation included
Manufacturer warranty
Local Perth metro support
Model
Quick Price Check

Want to chat? Call or text 0466 029 049 and we’ll help you choose the right option for your pool.

Year-round performance Provides efficient heating and cooling with operation in ambient temperatures down to -15°C
Smart Wi-Fi control Monitor and adjust temperature and operating modes through the Davey Heat Pump app
Ultra-quiet operation Turbo fan design and acoustic insulation help minimise poolside operating noise
High efficiency Full inverter technology automatically adjusts output and delivers a COP of up to 17.1

Enjoy your pool for more of the year with the Davey AquaThermPRO — a premium inverter heat pump designed to deliver powerful, efficient and exceptionally quiet pool heating and cooling.

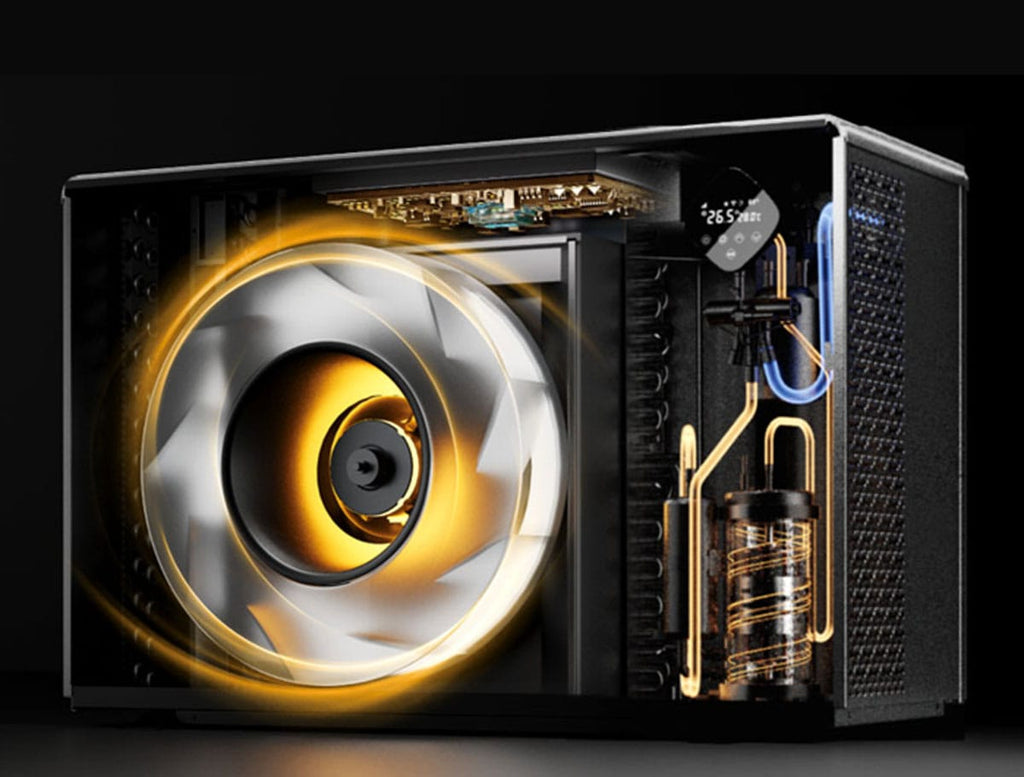

Using advanced twin rotary inverter compressors and a DC inverter fan, AquaThermPRO automatically adjusts its output to match your pool's heating demand. This helps maintain a more consistent temperature while reducing unnecessary energy consumption and running costs.

Powerful & Energy Efficient

With a COP of up to 15.5 under suitable operating conditions, AquaThermPRO can produce up to 15.5kW of heat energy from 1kW of electricity.

Designed for demanding conditions, the AquaThermPRO can provide heating and cooling and operate in ambient temperatures down to -15°C when correctly sized, helping extend your swimming season well beyond the warmer months.

Quiet, Smart Operation

Advanced fan technology and multi-layer acoustic insulation help keep operating noise to a minimum, making AquaThermPRO well suited to residential pool areas.

Choose between three performance modes:

  • Turbo – maximum heating performance

  • Perfect – balanced efficiency and performance

  • Silence – reduced output for quieter operation

Built-in Wi-Fi connectivity also allows you to monitor and adjust your desired pool temperature through the Davey Heat Pump app.

Designed for Flexible Installation

A side air discharge and rear air intake design makes AquaThermPRO easier to position in tighter equipment areas than many conventional heat pumps.

Its twisted titanium heat exchanger maximises water contact for efficient heat transfer, while the anti-corrosion weatherproof casing is designed for long-term outdoor use.

Key Features

  • Full inverter pool heating technology

  • Heating and cooling

  • COP up to 15.5

  • Operates down to -15°C when correctly sized

  • Twin rotary inverter compressors

  • DC inverter fan

  • Turbo, Perfect and Silence modes

  • Built-in Wi-Fi control

  • Touchscreen control panel

  • Quiet acoustic design

  • Twisted titanium heat exchanger

  • Water temperatures up to 40°C

  • Side air discharge for compact installation

  • Automatic reverse-cycle defrost

  • R32 refrigerant

  • Anti-corrosion weatherproof casing

Warranty

Davey currently provides:

  • 25 years against corrosion of the titanium heat-exchanger tube

  • 10 years – Heat exchanger and compressor

  • 5 years – All other components

  • 1 year – Labour

  • 1 year – Commercial use

Warranty is subject to Davey's terms and installation requirements.

Contact Splash Point – Pool Solutions for professional heat-pump sizing, product selection, supply and installation.

Specifications

Available models: DAT110, DAT140, DAT170, DAT220 and DAT270

Nominal model sizes: 11kW, 14kW, 17kW, 22kW and 27kW

Turbo Mode heating capacity at 27°C air / 27°C water:
DAT110: 11.5kW
DAT140: 14kW
DAT170: 17kW
DAT220: 22.5kW
DAT270: 26.5kW

Recommended pool volume:
DAT110: 20–45m³
DAT140: 30–55m³
DAT170: 35–65m³
DAT220: 40–80m³
DAT270: 50–95m³

Operating ambient temperature: -15°C to 43°C
Heating temperature range: 18°C to 40°C
Cooling: Yes
COP: Up to 17.1 depending on model and operating conditions
Power supply: 230V single phase, 50Hz
Refrigerant: R32
Compressor: DC twin-rotary inverter
Heat exchanger: Twisted titanium
Water connections: 40mm
Recommended water flow: 33–167 L/min depending on model
Wi-Fi control: Yes
Operating modes: Turbo, Perfect and Silence
Automatic reverse-cycle defrost: Yes
Airflow: Rear intake with side discharge
Casing: Weather-resistant aluminium alloy

Installation

The Davey AquaThermPRO should be professionally sized and installed to suit the pool volume, required temperature, local climate and expected operating season.

The heat pump must be installed outdoors on a solid, flat and level base with adequate ventilation and clear airflow around the unit.

Davey recommends locating the heat pump as close as practical to the pool filtration system and does not recommend positioning it more than 10 metres from the pool, as excessive pipe length can reduce performance and efficiency.

Installation uses a minimum of 40mm hard PVC pipework. Davey strongly recommends installing a bypass arrangement to allow correct flow regulation and make servicing or winterising easier.

A suitable condensate drain must be provided and the unit should be flushed and checked for leaks before commissioning.

Electrical installation must comply with applicable Australian requirements, including suitable RCD protection, with electrical work completed by a registered electrician.

Splash Point – Pool Solutions can size, supply, plumb and commission the AquaThermPRO, with licensed electrical work completed where required.

Warranty

Davey provides the following manufacturer warranty for the AquaThermPRO in domestic applications:

Titanium heat exchanger tube against corrosion: 25 years
Heat exchanger: 10 years
Compressor: 10 years
All other components: 5 years
Labour: 1 year

Commercial use: 1 year

Warranty coverage is subject to Davey’s current warranty conditions, correct installation, water chemistry, maintenance and operating requirements.

Australian Consumer Law rights apply in addition to the manufacturer warranty.
