SP-104
Tap a section to view your pool information.

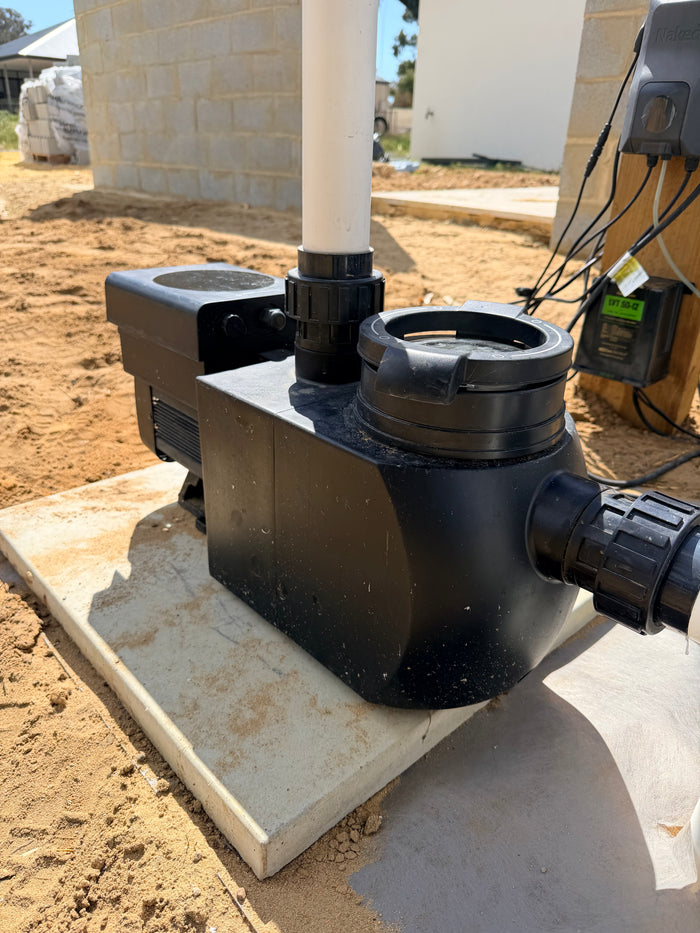

Madimak P400i 1.5HP
GoodHealth notesPump is working well. 2 way valve removed from front of the pump as its no longer required due to the new height of the pool equipment.
Recommended settingsHigh speed when backwashing or cleaning the pool. Medium speed is best for everyday running use and heating.

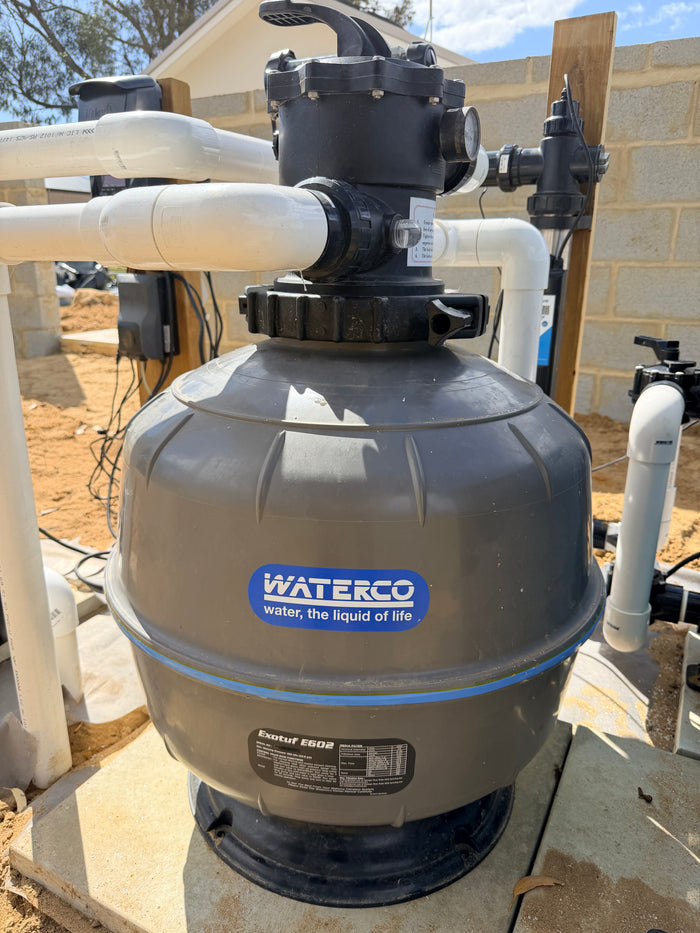

Waterco Exotuf E602 24" 50MM Filter - Glas Media
GoodHealth notesFilter is good. New glass media installed 30/09/2026. Backwashed plumbed to Soakwell
Recommended settingsBackwash when pressure gets to 130 - 150kpa. Pump will need to be running on high speed to get a true reading on the pressure gauge.

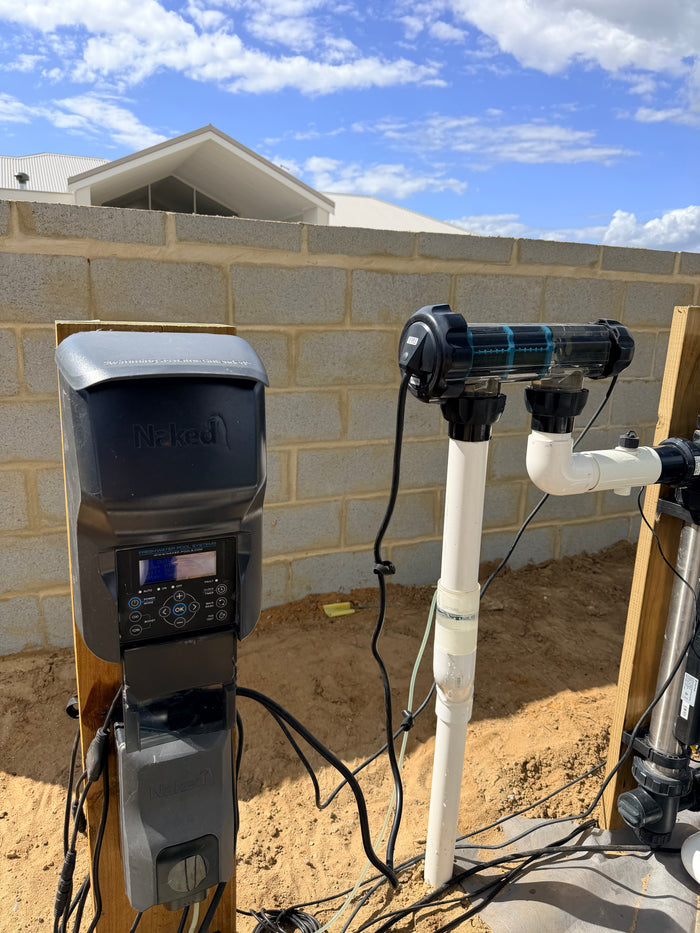

Naked Fresh Water NKD-1
GoodHealth notesNaked system is running well and set correctly.
Recommended settingsMonitor copper levels when leaving the blanket on the pool for long periods of time. The blanket will keep copper in the pool, which can plate out on the surface if it gets too high. Maintain a low salt level, never add more than 1 or 2 bags at a time. Do not add copper based algicides or stabiliser to pool as it is not necessary for your system. Recommend downloading the Naked App and registering the system if you haven't done so already as they have a lot of great support videos, and aftercare systems in place for technical questions.

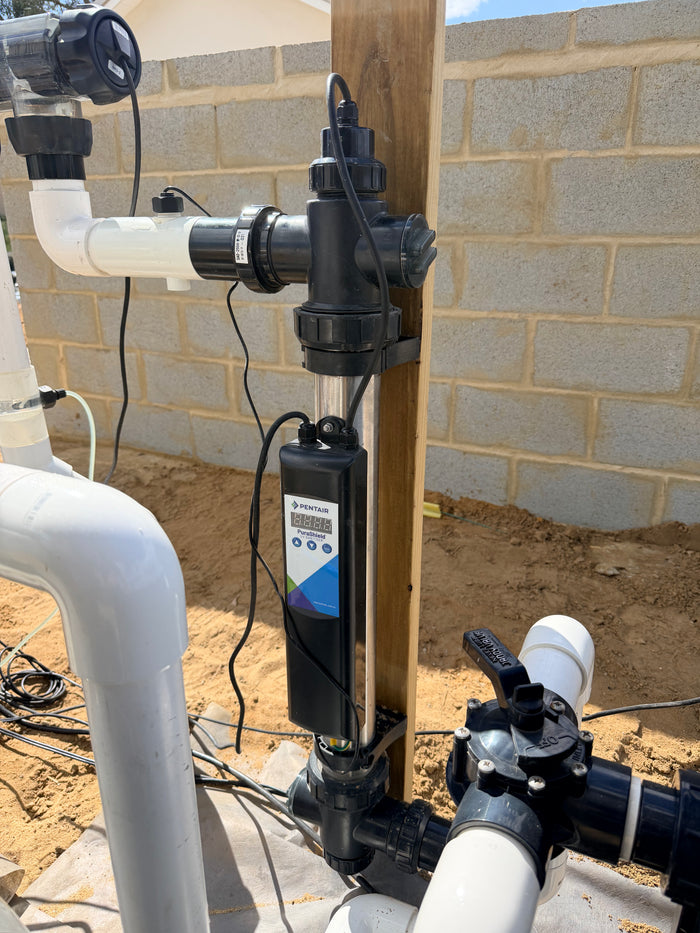

Pentair 75w PuraShield UV System
GoodHealth notesWorking as it should.
Recommended settingsNo settings required. Check occasionally that lamp is turning on and off with system but should last years.

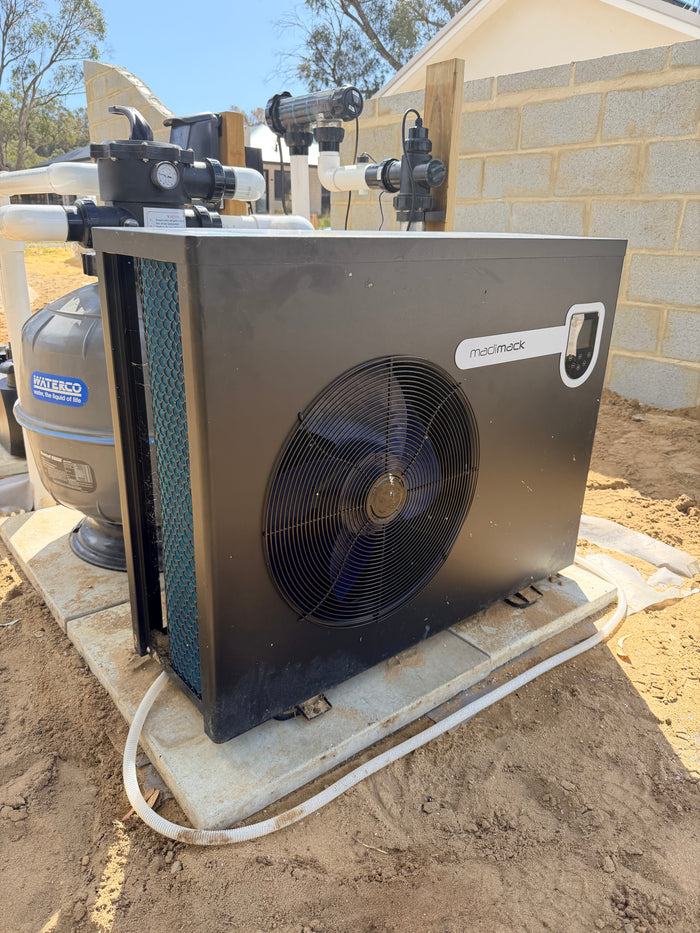

MadiMack ECO 200 20kw Front Discharge Heater
GoodHealth notesHeater working well. Bypass valves behind heater are set correctly for best temp in / out differential
Recommended settingsSanitisation becomes less affective above 30c, so best to have the set temp somewhere between 26c - 30c
Enter water test results from your home test kit or pool shop.
Dosage guidance: Estimates use Hy-Clor published product-chart rates for Calcium Increaser (200 g/10,000 L per ~15 ppm) and Stabiliser (500 g/10,000 L per ~50 ppm). Salt uses Passport chlorinator settings; buy whole 20 kg bags but add only the calculated amount. Copper advice depends on the exact controller. Always use calcium hardness (not total hardness) for calcium calculations. Check the exact product label, maximum single dose and application directions; never mix chemicals. Dose each chemical separately in the order shown, allowing the circulation time on its label. Never mix chemicals. For ordinary independent corrections, a single final retest is sufficient; if a step specifically requires an intermediate test, do that before continuing. Do not swim when sanitiser readings are unsafe. Estimates are not water-safety clearance or Hy-Clor approval.
Technician: Matt Hoffman

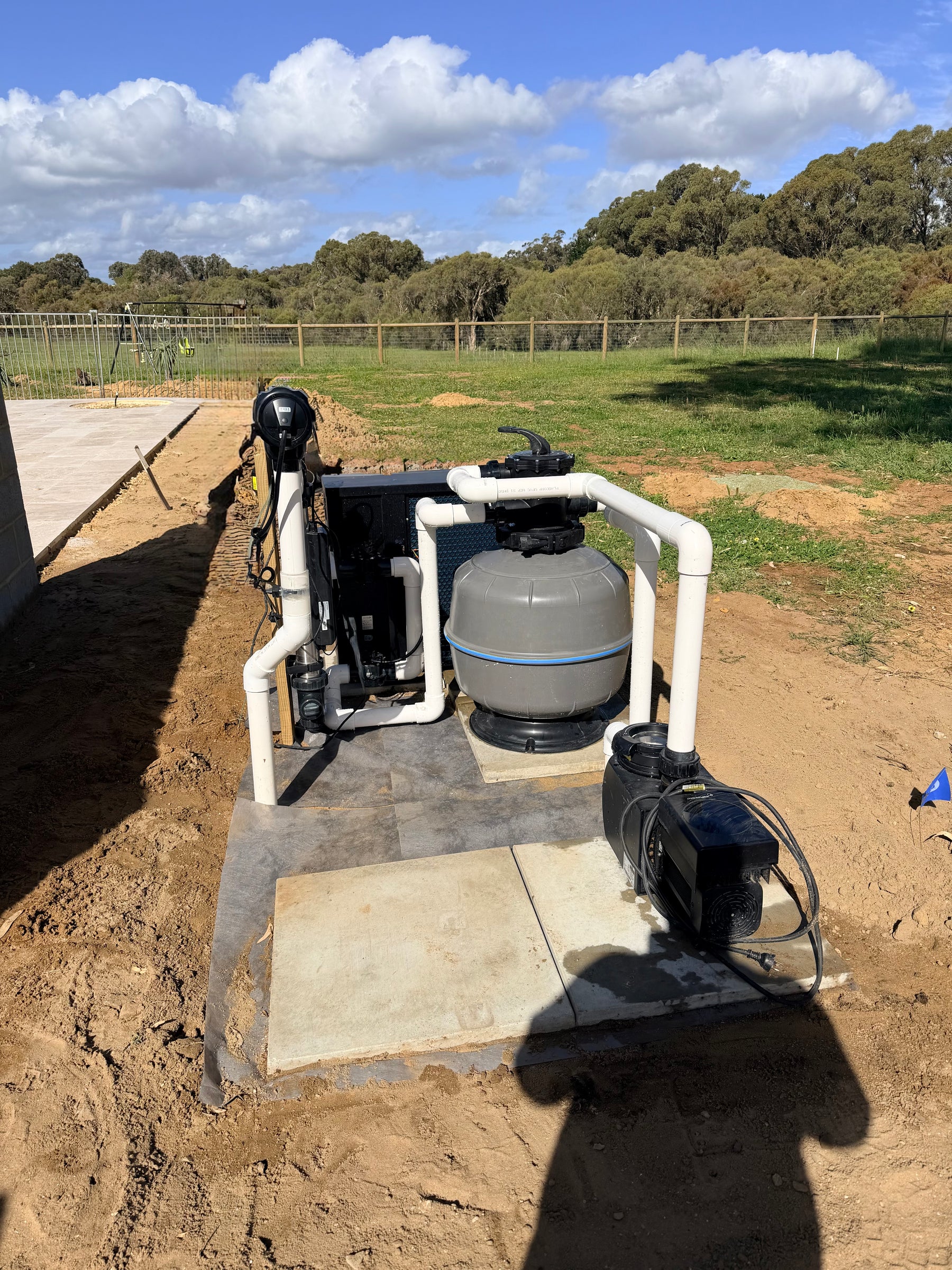

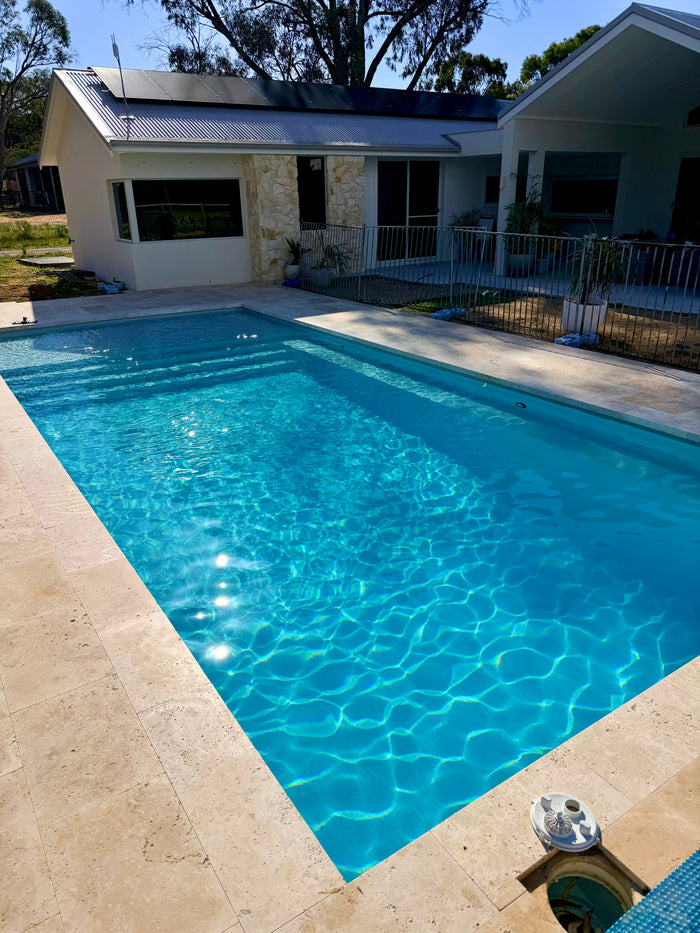

Works completedEquipment relocated to new location. Removed old glass and installed new glass to avoid damaging laterals when moving. Removed 2way valve on the front of the pump as its no longer needed due to new height. Backwash plumbed in. New configuration done to allow more room for maintenance. Cleaned pool.
No next steps required urgently. I recommend getting the heater serviced once a year, maybe before next Summer. Health check / full service could be done every 3 months or so. Thanks for choosing Splash Point!
