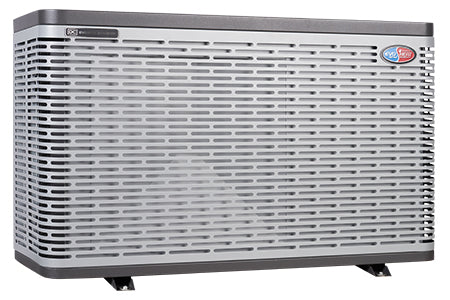

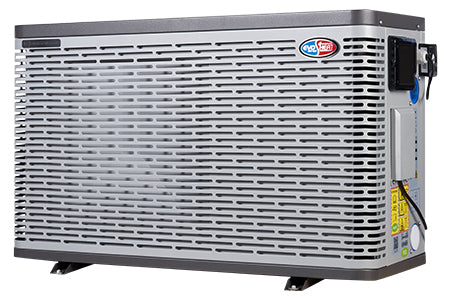

EvoHeat Edge-i Heat Pump
  • EvoHeat Edge-i Heat Pump
  • EvoHeat Edge-i Heat Pump
EvoHeat Edge-i Heat Pump

EvoHeat Edge-i Heat Pump

Space-saving full inverter pool heating with Wi-Fi control, heating and cooling, ultra-quiet operation and a unique side-discharge design for tighter installations.
Professional installation included
Manufacturer warranty
Local Perth metro support
Model
Quick Price Check

Want to chat? Call or text 0466 029 049 and we’ll help you choose the right option for your pool.

Full inverter performance Stepless DC inverter technology automatically adjusts output for efficient heating and cooling
Smart Wi-Fi control Monitor and adjust your pool temperature remotely from your smartphone
Ultra-quiet operation Silent Mode and low-noise fan technology keep operating noise as low as approximately 40dB(A)
Space-saving design Rear air intake and side discharge allow installation with as little as 50mm rear clearance

The EvoHeat Edge-i combines high-efficiency inverter heating with a clever space-saving design, making it ideal for pools where equipment space is limited.

Unlike traditional heat pumps that discharge air from the front, the Edge-i uses a rear air intake and side air discharge, allowing greater flexibility when installing beside walls, along narrow equipment areas or in other tighter spaces. EvoHeat specifies rear clearance as little as 50mm when installed in accordance with its requirements.

Efficient Heating & Cooling

Using stepless full DC inverter technology, the Edge-i automatically adjusts compressor and fan speed to match your pool's heating demand.

This helps maintain a stable water temperature while reducing unnecessary energy use, noise and running costs.

With a COP of up to 12.19 under suitable operating conditions, the Edge-i delivers strong heating efficiency while also providing cooling and automatic modes for greater year-round temperature control.

Smart & Quiet Operation

Built-in Wi-Fi and Bluetooth connectivity lets you monitor and adjust your pool heating from your smartphone.

The Edge-i is also designed for ultra-quiet operation, with selected models operating as low as approximately 40 dB(A) in Silent Mode, making it well suited to residential environments.

Key Features

  • Full stepless DC inverter technology

  • Pool heating and cooling

  • COP up to 12.19

  • Rear air intake and side air discharge

  • Ideal for wall mounting and tight installation areas

  • Wi-Fi and Bluetooth control

  • Built-in operating timers

  • Ultra-quiet operation

  • Automatic defrost system

  • Stable operation down to -7°C

  • Powder-coated steel cabinet

  • Eco-friendly R32 refrigerant

  • Excellent match for homes with solar PV

Warranty

EvoHeat currently lists the Edge-i with:

  • 25 years – Titanium heat exchanger

  • 5 years – Compressor

  • 2 years – Parts

  • 1 year – On-site labour

Warranty is subject to EvoHeat's terms and installation requirements.

Contact Splash Point – Pool Solutions for professional heat-pump sizing, product selection, supply and installation.

Specifications

Available models: Edge-i 7, 9, 13, 17 and 20
Heating output: Approx. 3.26–18.10kW depending on model and conditions
C.O.P.: Up to approximately 12.19
Heating and cooling: Yes
Power supply: 220–240V single phase
Connection type:
Edge-i 7 & 9: 10A
Edge-i 13: 15A
Edge-i 17 & 20: Hardwired
Refrigerant: R32
Water connections: 40mm PVC
Recommended water flow: Approx. 66.7–128.3 L/min depending on model
Noise at 1m: Approx. 39.5–53dB(A) depending on model and operating speed
Silent Mode: Yes
Wi-Fi control: Yes
Built-in timers: Yes
Controller: Touchscreen
Airflow design: Rear intake with side discharge
Minimum rear clearance: 50mm

Installation

The EvoHeat Edge-i should be professionally sized and installed to suit the pool volume, desired temperature, climate and expected swimming season.

Its rear-air-intake and side-discharge design makes it particularly suitable for compact equipment areas and wall-mounting applications.

EvoHeat specifies a minimum rear clearance of 50mm, approximately 1500mm side clearance and 500mm overhead clearance, with sufficient unobstructed airflow around the unit.

The heat pump must be installed with adequate water flow. A variable-speed pump or bypass valve arrangement should be provided so flow through the heater can be correctly adjusted.

Condensate drainage should also be provided.

Electrical connection must be completed by appropriately licensed personnel where required.

Splash Point – Pool Solutions can size, supply, plumb and commission the Edge-i, with licensed electrical work completed where required.

Warranty

EvoHeat provides the following Australian manufacturer warranty for the Edge-i Series:

Titanium heat exchanger: 25 years
Compressor: 5 years
Parts: 2 years
On-site labour: 1 year

Warranty coverage is subject to EvoHeat’s current warranty terms, correct installation, maintenance and operating requirements.

Australian Consumer Law rights apply in addition to the manufacturer warranty.
